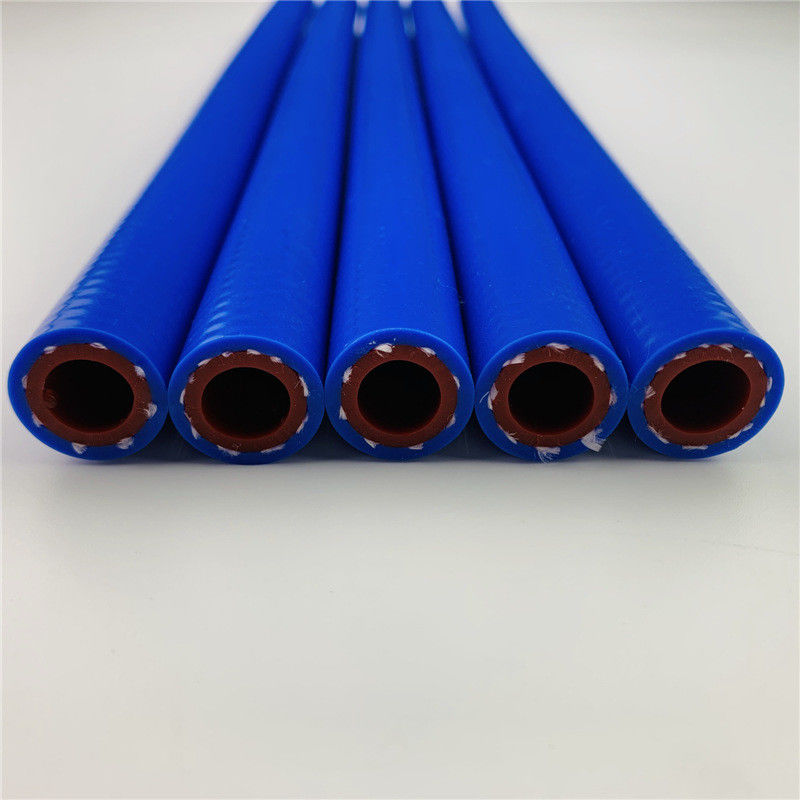

High temp hose Heatproof Flexible OD10mm Braid Reinforced Silicone Tubing

Large Image : High temp hose Heatproof Flexible OD10mm Braid Reinforced Silicone Tubing

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Tenchy
Certification:	FDA, ROSH, SGS
Model Number:	TS-MXSB04

Payment & Shipping Terms:

Delivery Time:	5-10 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10000 Meter/Meters per Day

Contact Now

Detailed Product Description

Temperature:	-60℃~200℃	Material:	Silicone Raw Material, Polyster
Hardness:	70 A	Certification:	FDA 21 CFR 177.2600, ROSH, SGS
Color:	Translucent, White, Red, Black, Etc	Feature:	Environment Friendly, Non-toxic, Tasteless, Safe And Reliable
Highlight:	OD10mm braid reinforced silicone tubing , heatproof flexible silicone tube , OD10mm flexible silicone tube

Platinum Cured Single Braid Silicone Reinforced Braided Hose

The silicone hose is platinum cured ,which makes the hose odorless and tasteless,In addition, the inner and outer walls of the silicone hose are completely smooth, making the flow of materials in the sanitary hose fully smooth, and at the same time making the cleaning of the silicone hose more convenient and effective. It is the hose for the pharmaceutical industry and Food&Beverage equipment.

Product Description

Polyester braided within the walls of silicone tubing
Raw materials meet FDA requirements
Reusable — will withstand repeated sterilization
Translucent natural color for visual contact with the flow
Able to resist extreme temperature variation: -60°C to 200°C
Odorless, tasteless, and inert
Excellent weatherability properties — resists U.V., ozone, gases, moisture, and extreme temperatures
Designed for elevated pressure applications
Free of BPA, latex and phthalates; RoHS compliant

Brand Name:	Tenchy
Material:	Silicone raw material, Polyster
Size:	Customized
Hardness:	70A
Feature:	Environment friendly, non-toxic, tasteless, Safe and reliable
Temperature:	-60℃~200℃
Application:	Food Processing Equipment Pharmaceutical & Bio Pharma Industries Aerospace & Military Industries Automotive Electrical Industries Minor Appliances Heater Tubing’s Brewery Transfer Silicone Tubing

Specification

Item Code	ID		OD		Min. Bend Radius Inch		Working Pressure		Burst Pressure
Item Code	(mm)	(inch)	(mm)	(inch)	(mm)	(inch)	(Bar)	Psi	(Bar)	(Psi)
RFSB-003	3.18	1/8’’	9.00	0.354	12.7	1/2’’	13.8	200	41.4	600
RFSB-005	5.00	3/16’’	11.00	0.433	25.4	1.00’’	11.7	170	35.1	509
RFSB-006	6.35	1/4’’	13.20	0.519	38.1	1-1/2’’	9.3	135	27.9	405
RFSB-009	9.52	3/8’’	16.60	0.654	57.15	2-1/4’’	7.0	101	21.0	305
RFSB-012	12.70	1/2’’	20.30	0.799	70.00	2-3/4’’	5.7	82	17.1	248
RFSB-015	15.87	5/8’’	24.50	0.965	82.55	3-1/4’’	4.3	62	12.9	187
RFSB-022	22.20	7/8’’	27.90	1.099	145	5-3/4’’	3.3	47	9.9	144
RFSB-025	25.40	1.00’’	34.50	1.358	157	6-1/4’’	3.0	43	9.0	131
RFSB-031	31.75	1-1/4’’	40.8	1.606	204	8.00’’	2.3	34	6.9	100
